What size U-bolts do I need to attach the extensions to my chain link fence?Updated a month ago
The Dog Proofer Fence Extension Systems can accept U-bolts between 1-⅝” and 2-½” wide.
While a 1-⅜” U-bolt will fit into the mounting brackets on both systems, it does not leave enough room for the washer and nut to be tightened since the extension tubing is 1-⅜" in diameter.
Two U-bolts are needed per extension, and we sell them in sets of two:
https://www.dogproofer.com/products/u-bolt-hardware-for-round-posts
While U-bolts are readily available at most hardware stores, they are not always available in large quantities. So, we stock the most common sizes of U-bolts, as seen below.
U-Bolt Size | SKU | Min. Size Post | Max. Size Post |
1-⅜” | UBOLT-RD-0001 | 1-¼” (1.25”) | 1-⅜” (1.375”) |
1-⅝” | UBOLT-RD-0002 | 1-⅜” (3.375”) | 1-⅝” (1.625”) |
2” | UBOLT-RD-0004 | 1-⅝” (1.625) | 2” (2.000”) |
2-½” | UBOLT-RD-0003 | 2” (2.000”) | 2-½” (2.500”) |
2” Square | UBOLT-SQ | Designed for 2” Square metal posts - common with aluminum and wrought iron fences. |
NOTE: If you measured the circumference of a post rather than the diameter, it can be converted easily. PDF LINKED HERE

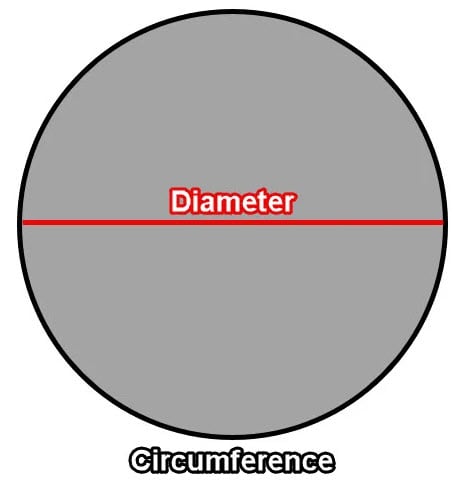

CIRCUMFERENCE = The distance measured AROUND the post
DIAMETER = The distance measured ACROSS the top of the post
